THE CDR-25
COMPACT DOSING ROBOT
State of the art water management. Elevate your systems today.
Elevate your water management systems with the IN-FLUID CDR-25 Compact Dosing Robot. All functionality needed for common dosing applications combined into a single device.
CDR-25 Features
Wide flow operating range - 0.1 to 100 litres per minute
Electronically driven dosing mechanism
Accurate flow sensor
Patented technology
Easy to install
Plug and play
Wifi updates
This revolutionary Dosing Robot is the ultimate solution to take your water management to a new level. The CDR-25 is a combination dosing device that provides water flow registration and product dosing at the same time. The unique electronic sensor technology has a flow detection varying from 100 mL (0.1L) / minute to 100 L / minute. The magnetic driven piston is powerful and has a consistent output of approximately 0.7 mL per stroke.
The CDR-25 injects products directly into the waterline which avoids injection valve failures. The CDR-25 can be programmed with multiple dosing options including scheduled time dosing, low flow dosing (for start-ups), or regular dosing ratios from 1 – 10,000. The digital screen makes it easy to control the pump settings and monitor all information and history tracking.

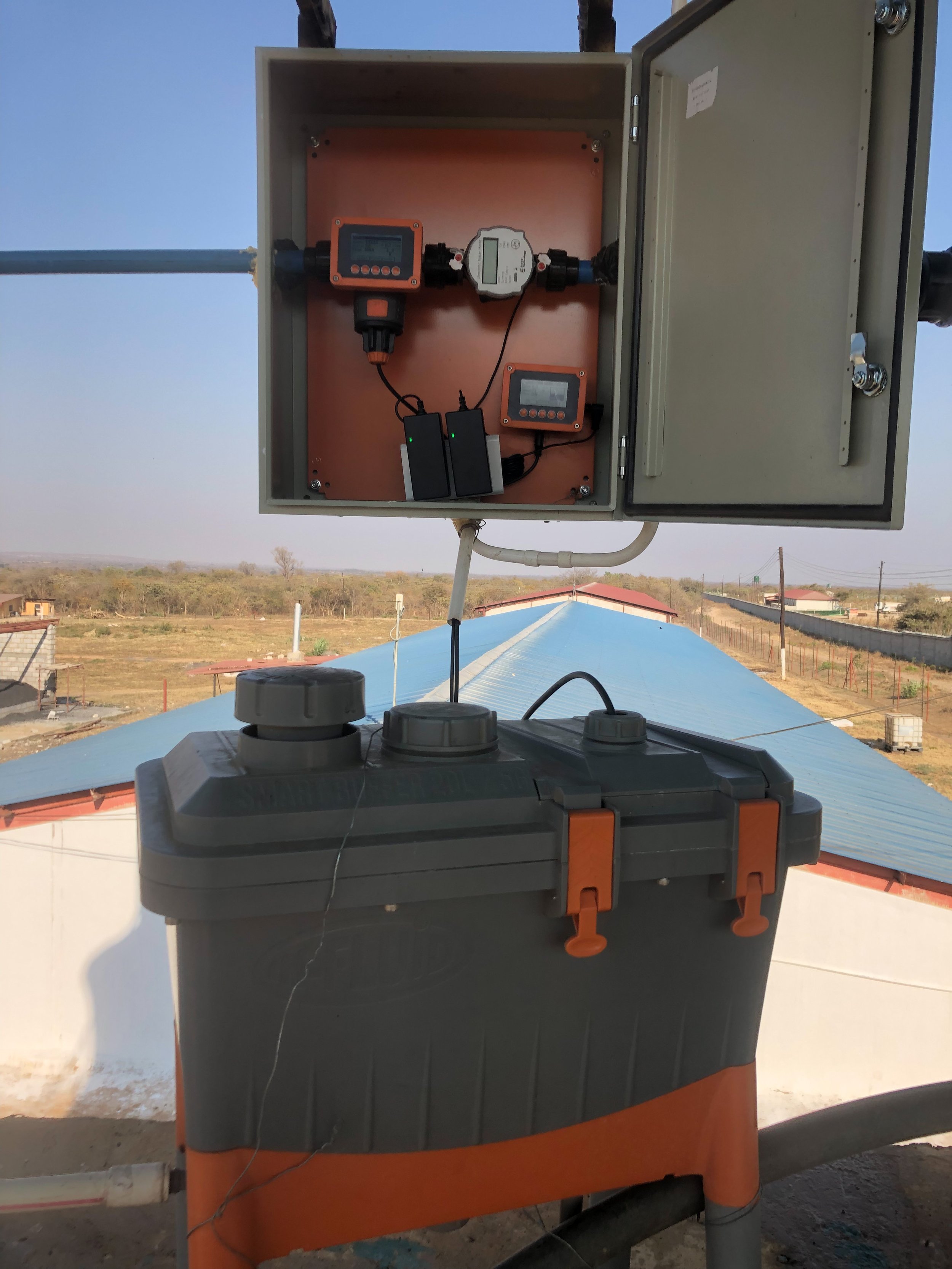

INSTALLATION EXAMPLES
